NU216EM TM01

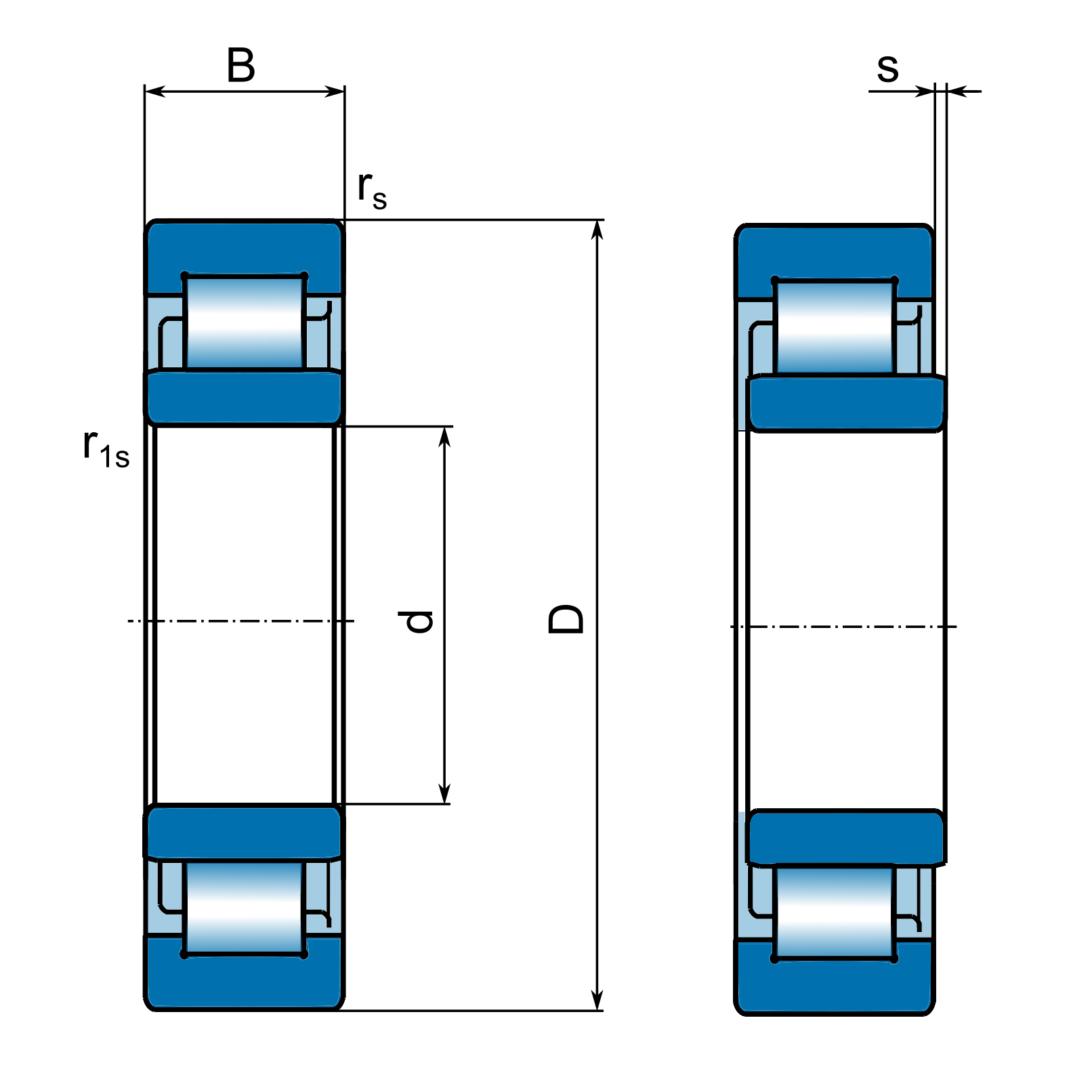

Size and weight
| Ød | 80 mm |
| ØD | 140 mm |
| B | 26 mm |
| rₛ | 2 mm |
| r₁ₛ | 2 mm |
| s | 2 mm |
| Mass | 1.7 kg |
Data on related components
| dₐ | min. 90 mm |
| dₐ | max. 92 mm |
| db | min. 97 mm |
| Dₐ | max. 130 mm |
| rₐ | max. 2 mm |
| rb | max. 2 mm |
Data for calculation
| Basic dynamic load rating | Cᵣ | 139 kN |
| Basic static load rating | C₀ᵣ | 167 kN |
| Fatigue load limit | Cᵤ | 19.8 kN |
| Reference speed - grease | nG | 4500 min⁻¹ |
| Reference speed - oil | nₒ | 5300 min⁻¹ |
** indicates bearing in NEW FORCE standard
