6218M TM01
Size and weight
| Ød | 90 mm |
| ØD | 160 mm |
| B | 30 mm |
| rₛ | 2 mm |
| Mass | 2.16 kg |

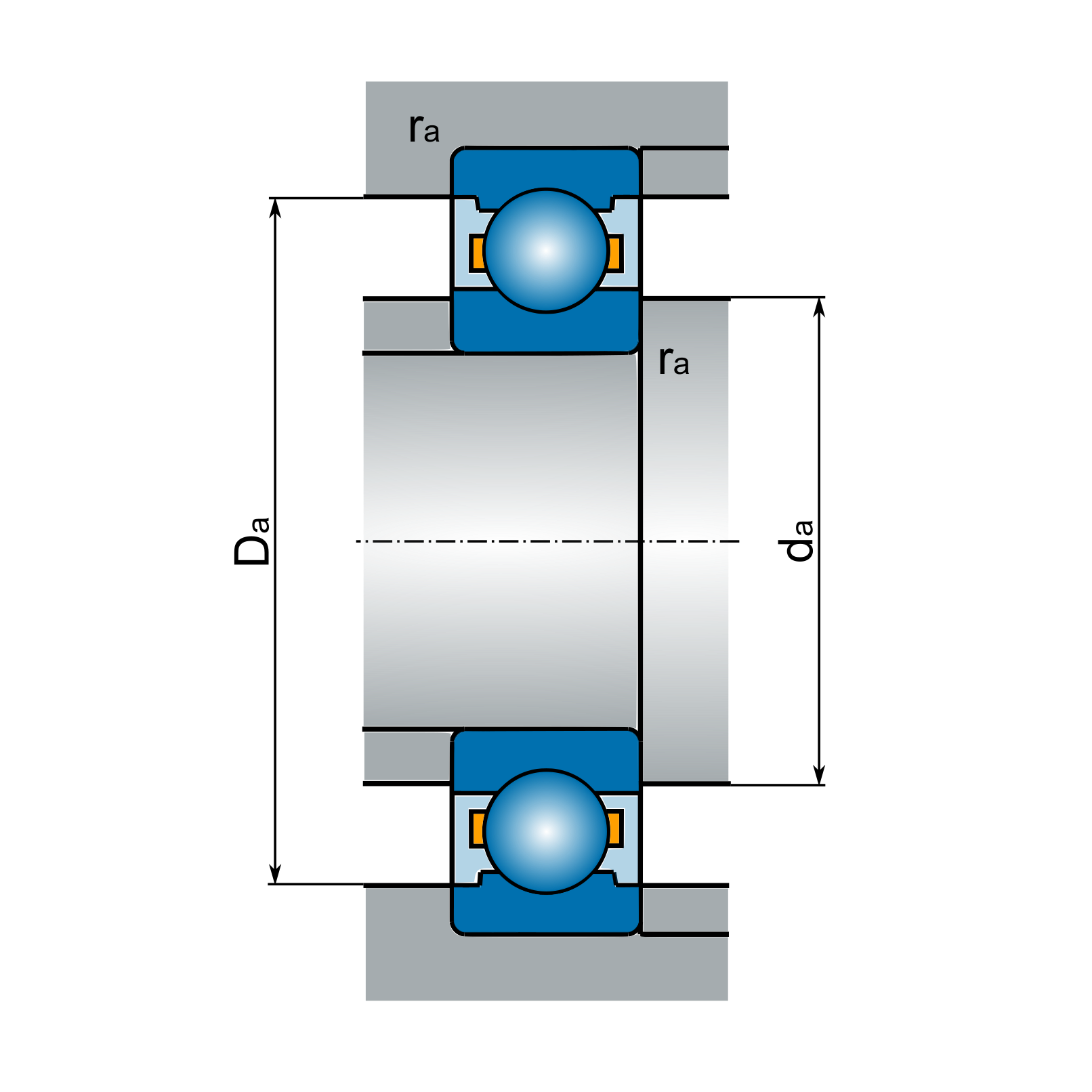

Data on related components
| dₐ | min. 100 mm |
| Dₐ | max. 150 mm |
| rₐ | max. 2 mm |
Data for calculation
| Basic dynamic load rating | Cᵣ | 96.2 kN |
| Basic static load rating | C₀ᵣ | 70.8 kN |
| Fatigue load limit | Cᵤ | 2.9 kN |
| Reference speed - grease | nG | 4000 min⁻¹ |
| Reference speed - oil | nₒ | 4700 min⁻¹ |
** indicates bearing in NEW FORCE standard
