23944-2RSNK TM**
Size and weight
| Ød | 220 mm |
| ØD | 300 mm |
| B | 60 mm |
| rₛ | 2.1 mm |
| a | 4.5 mm |
| b | 8.3 mm |
| Mass | 12.1 kg |

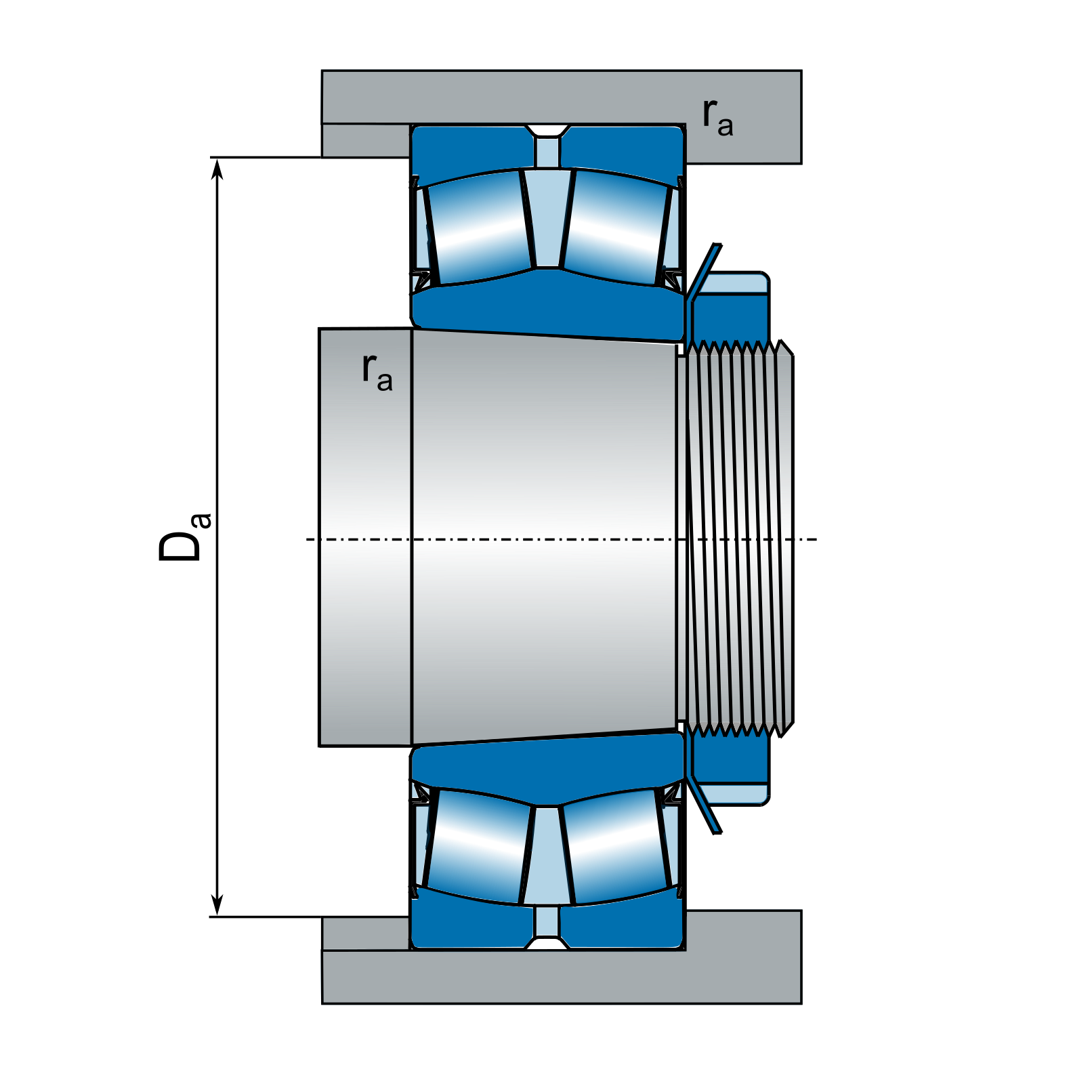

Data on related components
| dₐ | min. – mm |
| Dₐ | max. 289 mm |
| rₐ | max. 2 mm |
Data for calculation
| Basic dynamic load rating | Cᵣ | 680 kN |
| Basic static load rating | C₀ᵣ | 1330 kN |
| Fatigue load limit | Cᵤ | 122 kN |
| Reference speed - grease | nG | 600 min⁻¹ |
** indicates bearing in NEW FORCE standard
