23144-2RSH TM**

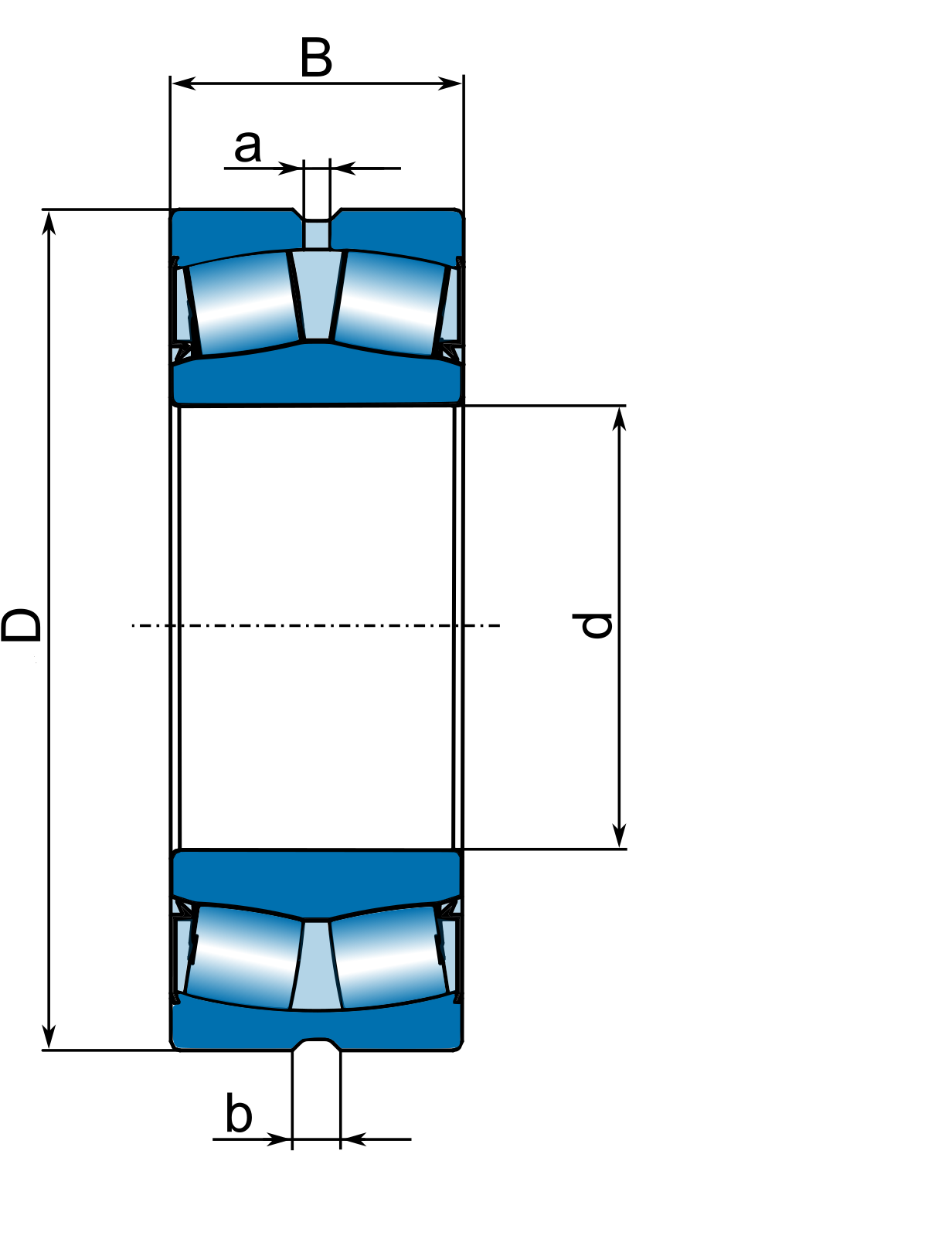

Size and weight
| Ød | 220 mm |
| ØD | 370 mm |
| B | 120 mm |
| rₛ | 4 mm |
| a | 9 mm |
| b | 16.7 mm |
| Mass | 52.3 kg |
Data on related components
| dₐ | min. 237 mm |
| Dₐ | max. 353 mm |
| rₐ | max. 3 mm |
Data for calculation
| Basic dynamic load rating | Cᵣ | 1880 kN |
| Basic static load rating | C₀ᵣ | 2890 kN |
| Fatigue load limit | Cᵤ | 255 kN |
| Reference speed - grease | nG | 360 min⁻¹ |
** indicates bearing in NEW FORCE standard
