6001-2RS

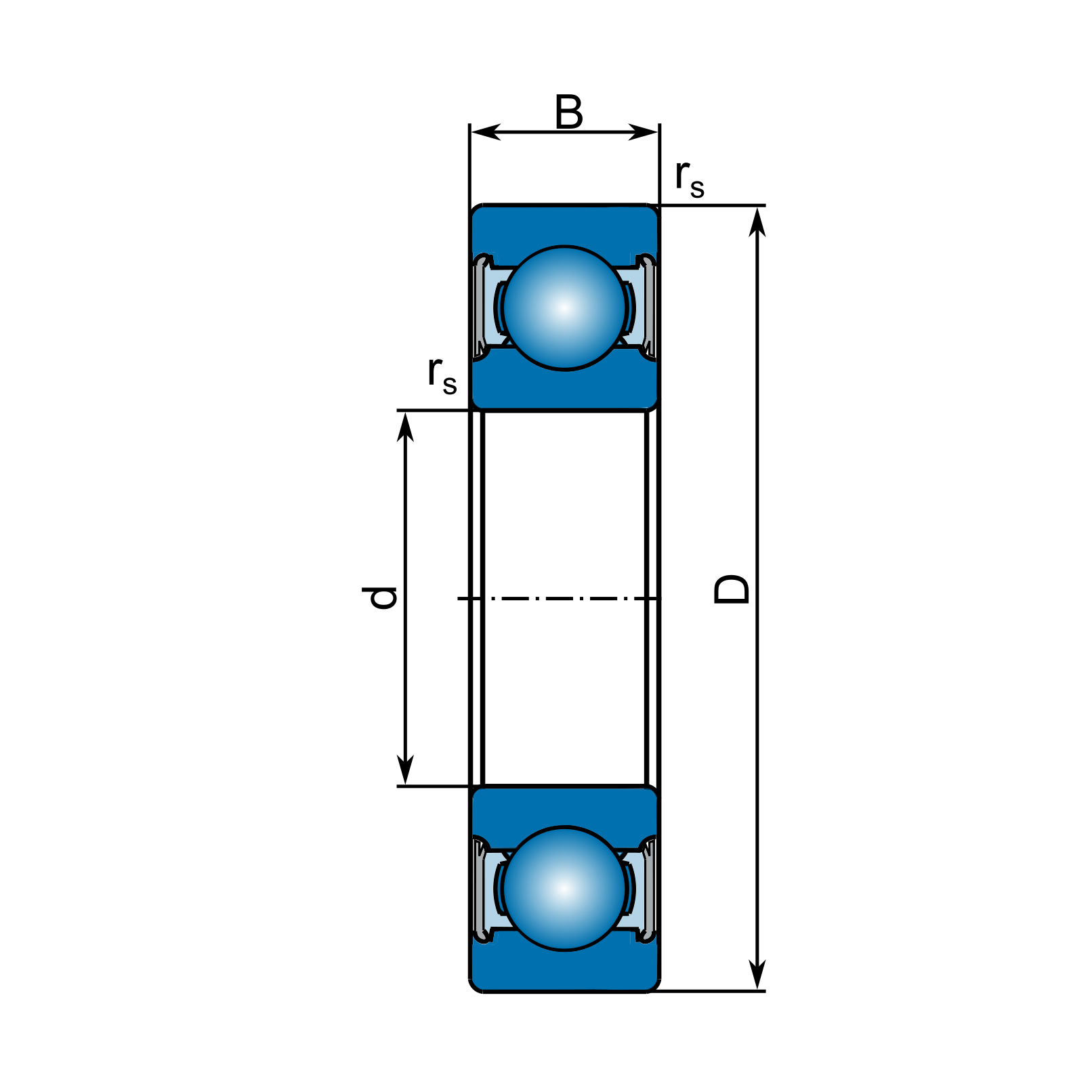

Size and weight
| Ød | 12 mm |
| ØD | 28 mm |
| B | 8 mm |
| rₛ | 0.3 mm |
| Mass | 0.022 kg |
Data on related components
| dₐ | max. 14 mm |
| db | max. 14.5 mm |
| Dₐ | max. 26 mm |
| rₐ | max. 0.3 mm |
Data for calculation
| Basic dynamic load rating | Cᵣ | 5.09 kN |
| Basic static load rating | C₀ᵣ | 2.36 kN |
| Fatigue load limit | Cᵤ | 0.11 kN |
| Reference speed - grease | nG | 17000 min⁻¹ |
| Reference speed - oil | nₒ | - min⁻¹ |
** indicates bearing in NEW FORCE standard
