QJ217MA
Size and weight
| Ød | 85 mm |
| ØD | 150 mm |
| B | 28 mm |
| h | - mm |
| r₀ | - mm |
| rₛ | 2 mm |
| a | 83 mm |
| b | - mm |
| Mass | 2.25 kg |

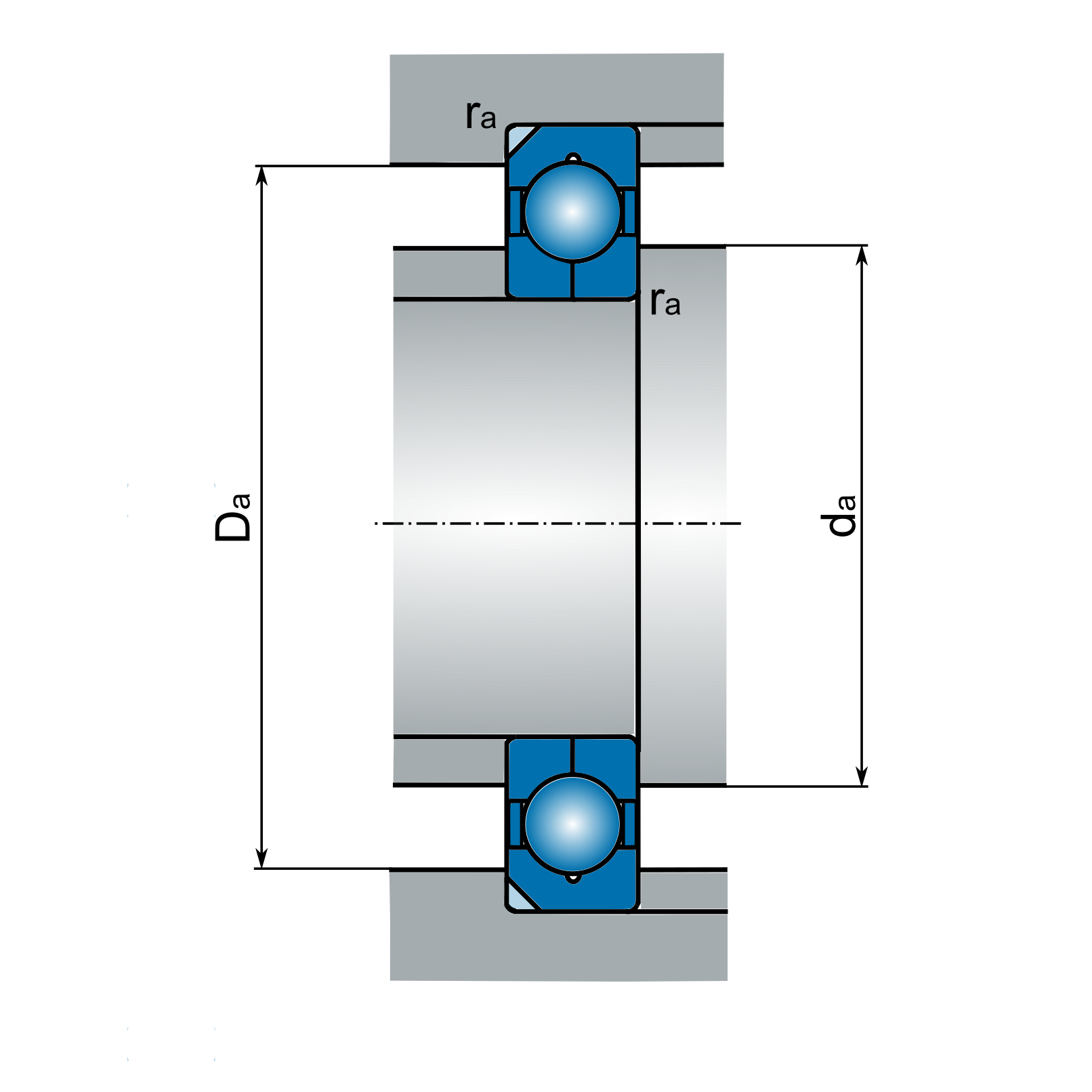

Data on related components
| dₐ | min. 96 mm |
| Dₐ | max. 139 mm |
| rₐ | max. 2 mm |
Data for calculation
| Basic dynamic load rating | Cᵣ | 148 kN |
| Basic static load rating | C₀ᵣ | 160 kN |
| Fatigue load limit | Cᵤ | 6.2 kN |
| Reference speed - grease | nG | 3400 min⁻¹ |
| Reference speed - oil | nₒ | 4500 min⁻¹ |
** indicates bearing in NEW FORCE standard
