NUP313
Size and weight
| Ød | 65 mm |
| ØD | 140 mm |
| B | 33 mm |
| rₛ | 2.1 mm |
| r₁ₛ | 2.1 mm |
| s | - mm |
| Mass | 2.25 kg |

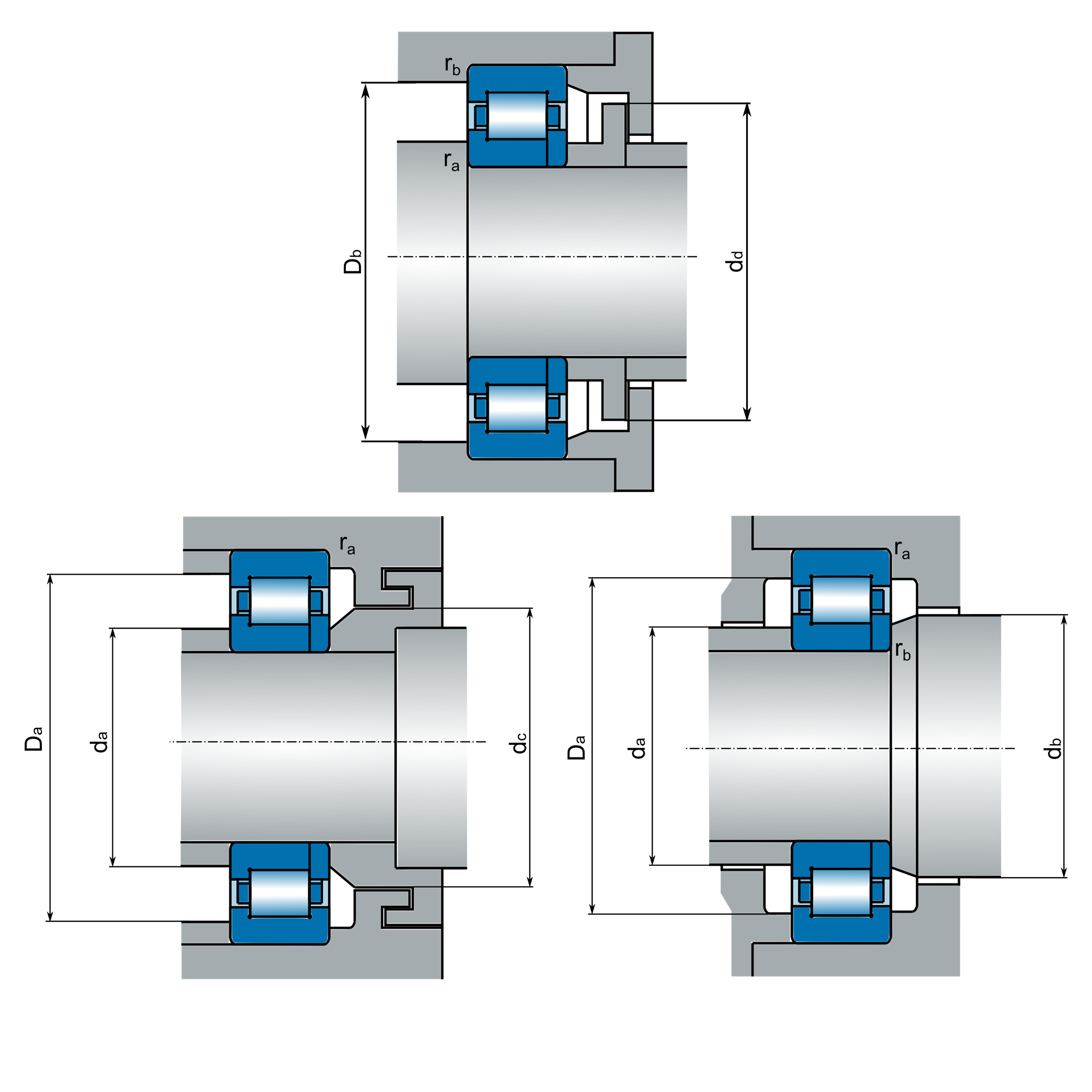

Data on related components
| dₐ | min. 76 mm |
| dₐ | max. 78 mm |
| db | min. 85 mm |
| dc | min. 94 mm |
| dd | max. - mm |
| Dₐ | max. 128 mm |
| Db | min. - mm |
| rₐ | max. 2 mm |
| rb | max. 2 mm |
Data for calculation
| Basic dynamic load rating | Cᵣ | 131 kN |
| Basic static load rating | C₀ᵣ | 128 kN |
| Fatigue load limit | Cᵤ | 15.5 kN |
| Reference speed - grease | nG | 4500 min⁻¹ |
| Reference speed - oil | nₒ | 5300 min⁻¹ |
** indicates bearing in NEW FORCE standard
