NSF2988V**
Size and weight
| Ød | 440 mm |
| ØD | 600 mm |
| B | 95 mm |
| rₛ | 4 mm |
| r₁ₛ | 4 mm |
| s | 6 mm |
| Mass | 80.5 kg |

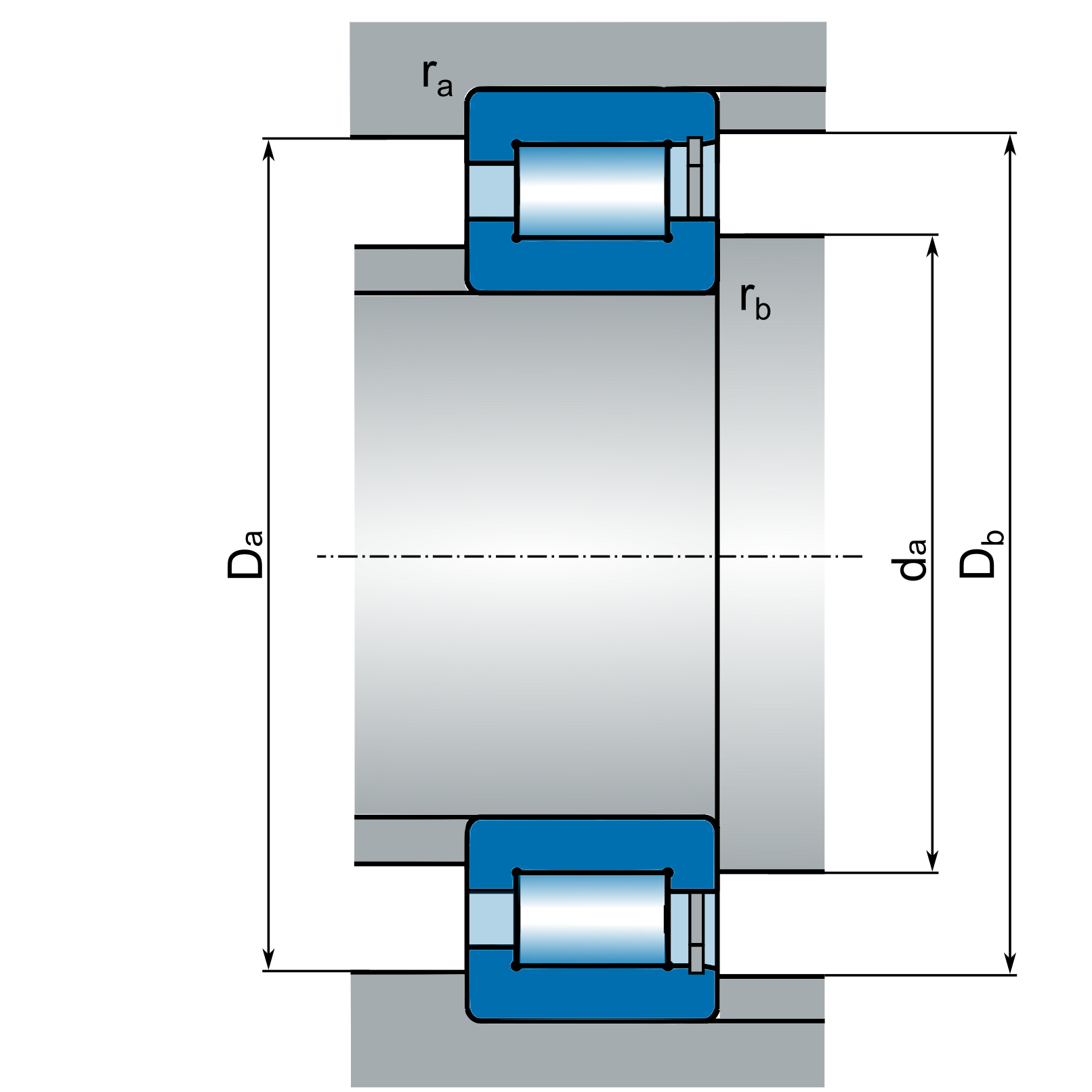

Data on related components
| dₐ | min. 455 mm |
| db | max. - mm |
| dₐₛ | 492 mm |
| Dₐ | max. 585 mm |
| Db | max. 585 mm |
| rₐ | max. 3 mm |
| rb | max. 3 mm |
Data for calculation
| Basic dynamic load rating | Cᵣ | 2010 kN |
| Basic static load rating | C₀ᵣ | 4400 kN |
| Fatigue load limit | Cᵤ | 327 kN |
| Reference speed - grease | nG | 360 min⁻¹ |
| Reference speed - oil | nₒ | 430 min⁻¹ |
** indicates bearing in NEW FORCE standard
