NNU4080KM**
Size and weight
| Ød | 400 mm |
| ØD | 600 mm |
| B | 200 mm |
| rₛ | 5 mm |
| r₁ₛ | 5 mm |
| a | 9 mm |
| b | 16.7 mm |
| s | 7.9 mm |
| Mass | 205 kg |

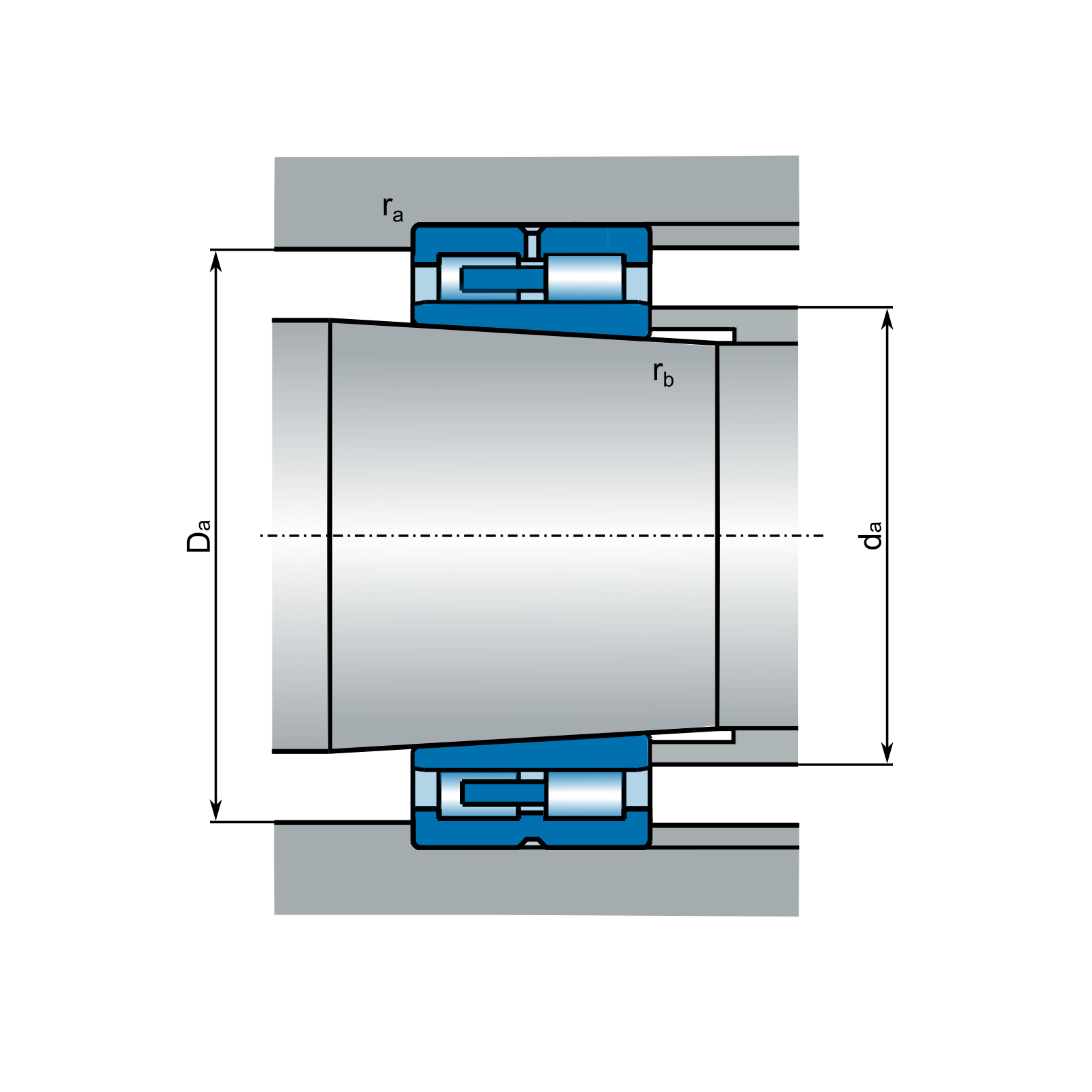

Data on related components
| dₐ | min. 420 mm |
| dₐ | max. 440 mm |
| Dₐ | min. - mm |
| Dₐ | max. 580 mm |
| rₐ | max. 4 mm |
| rb | max. 4 mm |
Data for calculation
| Basic dynamic load rating | Cᵣ | 3400 kN |
| Basic static load rating | C₀ᵣ | 7100 kN |
| Fatigue load limit | Cᵤ | 352 kN |
| Reference speed - grease | nG | 800 min⁻¹ |
| Reference speed - oil | nₒ | 950 min⁻¹ |
** indicates bearing in NEW FORCE standard
