NJB2316VH

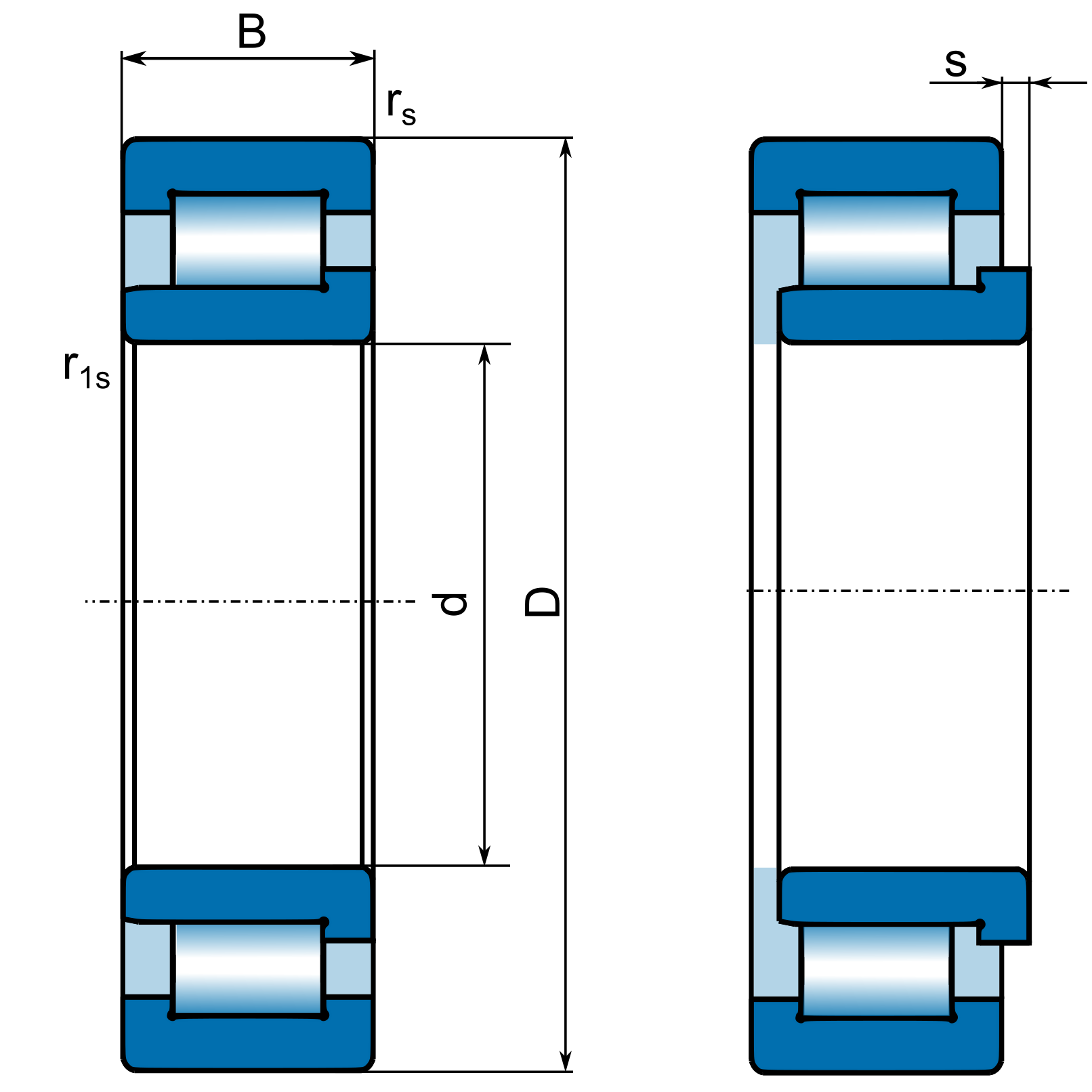

Size and weight
| Ød | 80 mm |
| ØD | 170 mm |
| B | 58 mm |
| rₛ | 2.1 mm |
| s | 4 mm |
| Mass | 6.4 kg |
Data on related components
| dₐ | min. 92 mm |
| db | max. 95 mm |
| dₐₛ | 104 mm |
| Dₐ | max. 158 mm |
| Db | max. - mm |
| rₐ | max. 2 mm |
Data for calculation
| Basic dynamic load rating | Cᵣ | 437 kN |
| Basic static load rating | C₀ᵣ | 552 kN |
| Fatigue load limit | Cᵤ | 63 kN |
| Reference speed - grease | nG | 1100 min⁻¹ |
| Reference speed - oil | nₒ | 1400 min⁻¹ |
** indicates bearing in NEW FORCE standard
