N416M

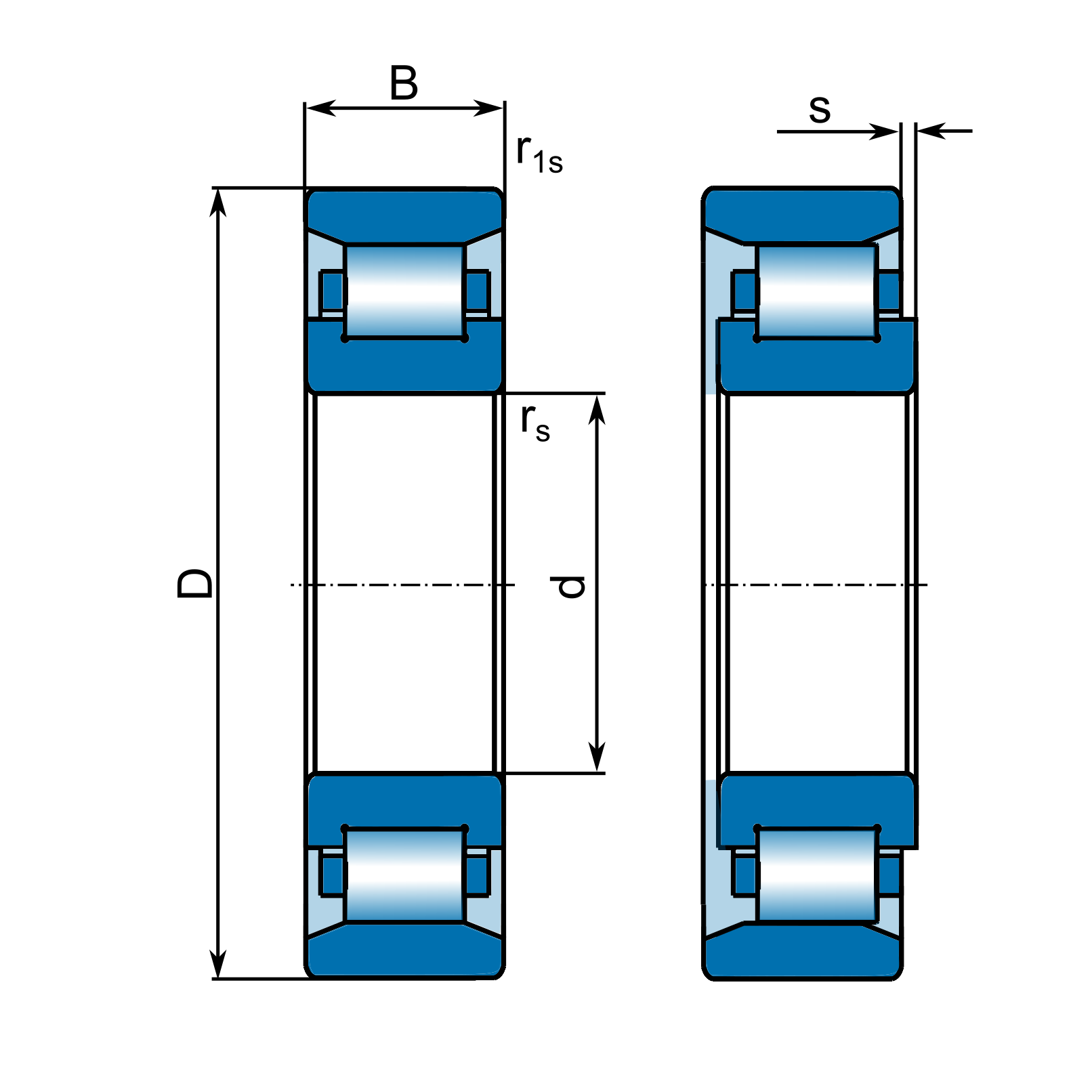

Size and weight
| Ød | 80 mm |
| ØD | 200 mm |
| B | 48 mm |
| rₛ | 3 mm |
| r₁ₛ | 3 mm |
| s | 2 mm |
| Mass | 7.3 kg |
Data on related components
| dₐ | min. 95 mm |
| dₐ | max. 105 mm |
| db | min. 112 mm |
| dc | min. 125 mm |
| dd | max. 167 mm |
| Dₐ | max. 184 mm |
| Db | min. 174 mm |
| rₐ | max. 2.5 mm |
| rb | max. 2.5 mm |
Data for calculation
| Basic dynamic load rating | Cᵣ | 299 kN |
| Basic static load rating | C₀ᵣ | 293 kN |
| Fatigue load limit | Cᵤ | 32.3 kN |
| Reference speed - grease | nG | 3000 min⁻¹ |
| Reference speed - oil | nₒ | 3500 min⁻¹ |
** indicates bearing in NEW FORCE standard
