N414

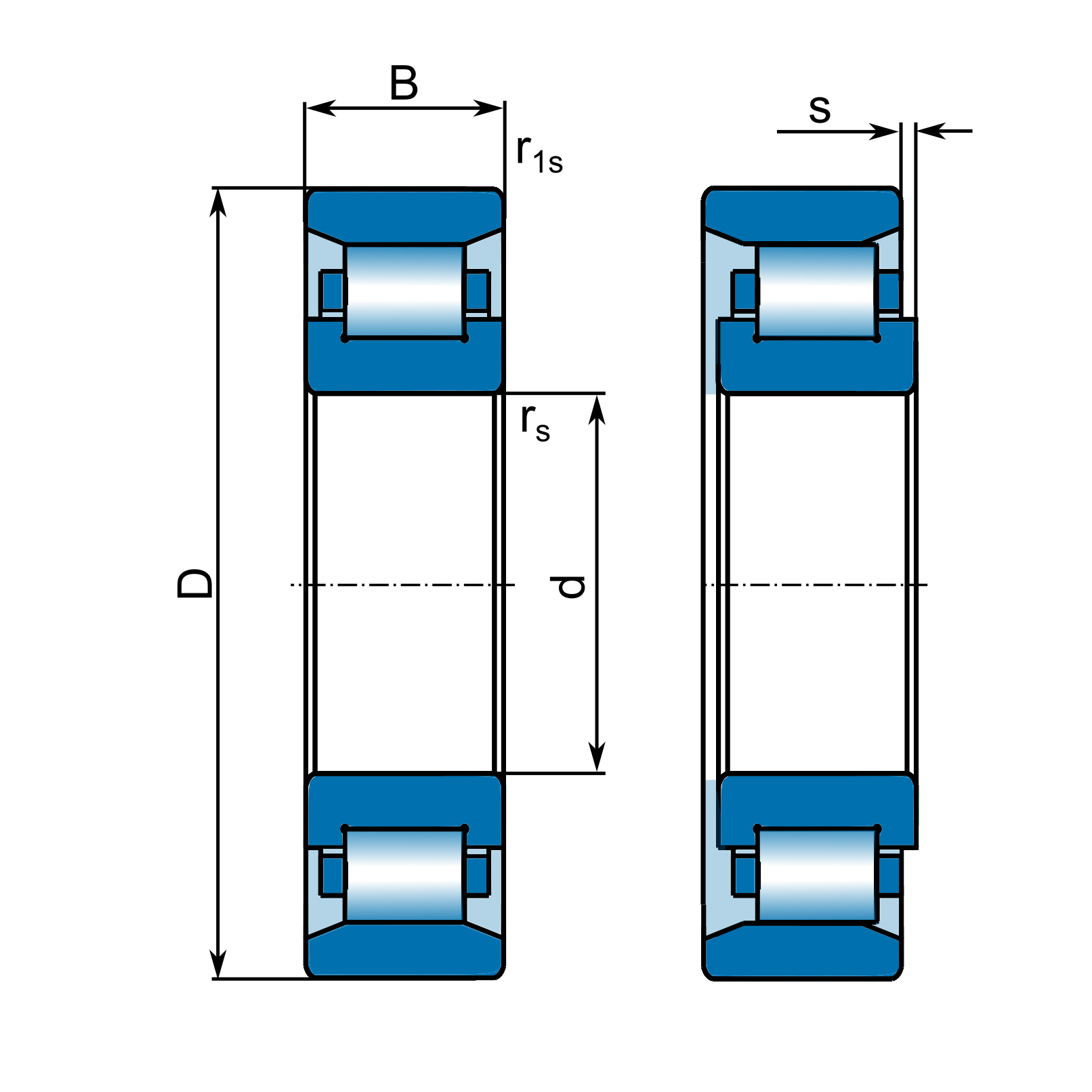

Size and weight
| Ød | 70 mm |
| ØD | 180 mm |
| B | 42 mm |
| rₛ | 3 mm |
| r₁ₛ | 3 mm |
| s | 2 mm |
| Mass | 5.25 kg |
Data on related components
| dₐ | min. 85 mm |
| dₐ | max. 93 mm |
| db | min. 102 mm |
| dc | min. 114 mm |
| dd | max. 149 mm |
| Dₐ | max. 164 mm |
| Db | min. 156 mm |
| rₐ | max. 2.5 mm |
| rb | max. 2.5 mm |
Data for calculation
| Basic dynamic load rating | Cᵣ | 224 kN |
| Basic static load rating | C₀ᵣ | 215 kN |
| Fatigue load limit | Cᵤ | 24.5 kN |
| Reference speed - grease | nG | 3300 min⁻¹ |
| Reference speed - oil | nₒ | 4000 min⁻¹ |
** indicates bearing in NEW FORCE standard
