N306ETNG

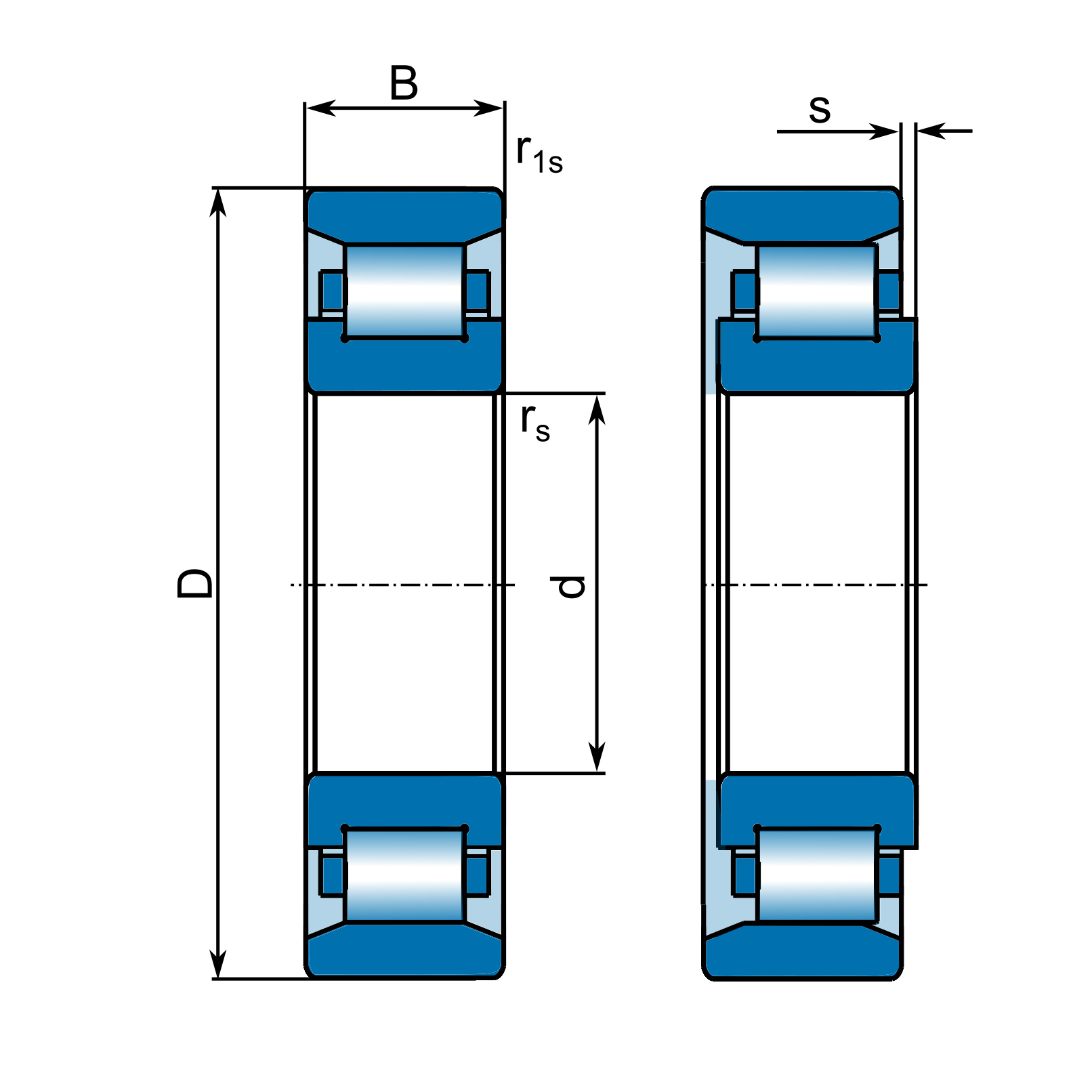

Size and weight
| Ød | 30 mm |
| ØD | 72 mm |
| B | 19 mm |
| rₛ | 1.1 mm |
| r₁ₛ | 1.1 mm |
| s | 1.4 mm |
| Mass | 0.36 kg |
Data on related components
| dₐ | min. 36 mm |
| dₐ | max. 37.5 mm |
| db | min. 43 mm |
| dc | min. 47 mm |
| dd | max. 60 mm |
| Dₐ | max. 65 mm |
| Db | min. 64 mm |
| rₐ | max. 1 mm |
| rb | max. 1 mm |
Data for calculation
| Basic dynamic load rating | Cᵣ | 53.1 kN |
| Basic static load rating | C₀ᵣ | 46.4 kN |
| Fatigue load limit | Cᵤ | 5.66 kN |
| Reference speed - grease | nG | 8400 min⁻¹ |
| Reference speed - oil | nₒ | 10000 min⁻¹ |
** indicates bearing in NEW FORCE standard
