N207ETNG

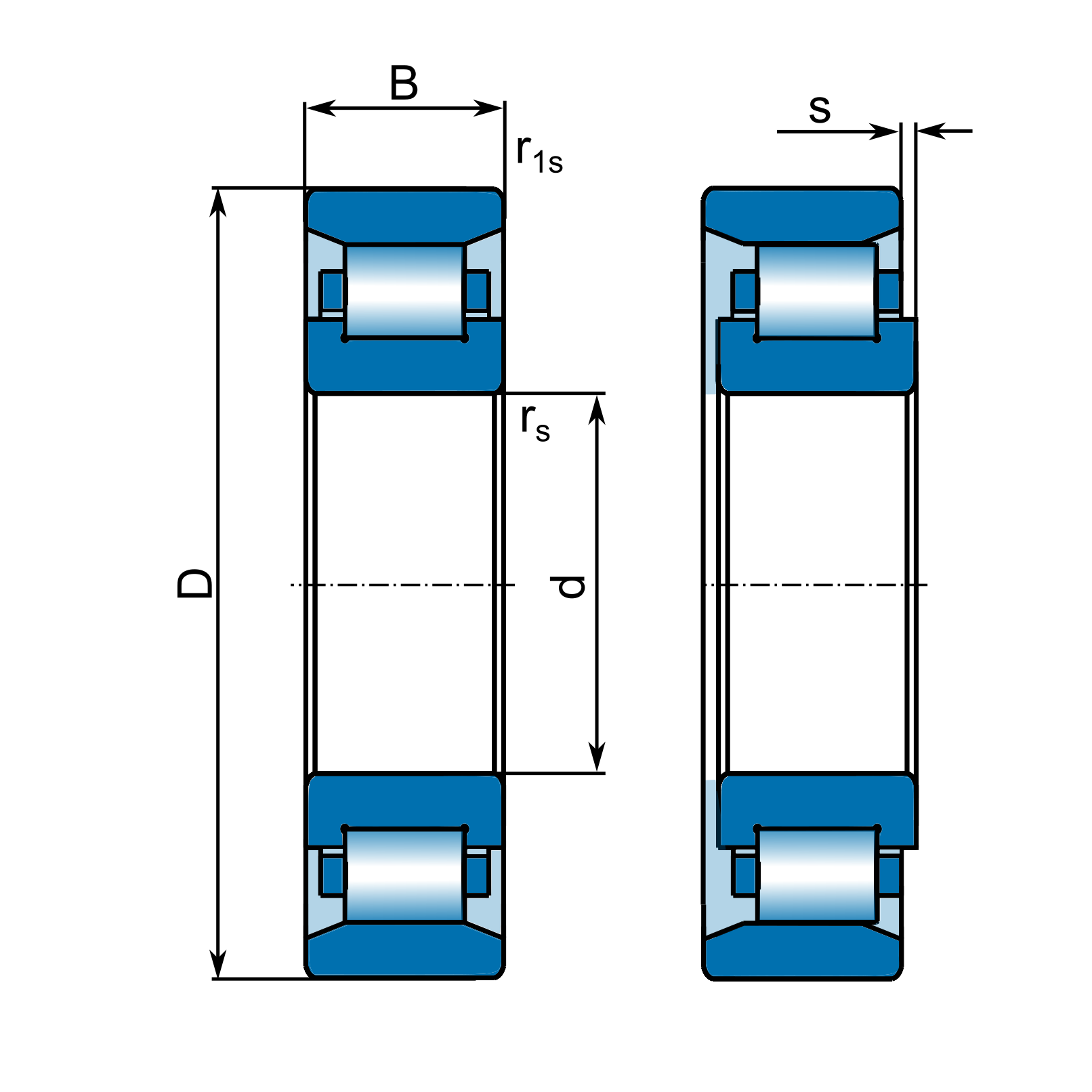

Size and weight
Ød | 35 mm |
ØD | 72 mm |
B | 17 mm |
rₛ | 1.1 mm |
r₁ₛ | 0.6 mm |
s | 1.4 mm |
Mass | 0.29 kg |
Data on related components
dₐ | min. 42 mm |
dₐ | max. 42 mm |
db | min. 46 mm |
dc | min. 50 mm |
dd | max. 62 mm |
Dₐ | max. 65 mm |
Db | min. 65 mm |
rₐ | max. 1 mm |
rb | max. 0.6 mm |
Data for calculation
Basic dynamic load rating | Cᵣ | 51.1 kN |
Basic static load rating | C₀ᵣ | 48.2 kN |
Fatigue load limit | Cᵤ | 5.88 kN |
Reference speed - grease | nG | 8900 min⁻¹ |
Reference speed - oil | nₒ | 10600 min⁻¹ |
** indicates bearing in NEW FORCE standard
