C 6003
Size and weight
| Ød | 17 mm |
| ØD | 35 mm |
| B | 10 mm |
| rₛ | 0.3 mm |
| Mass | 0.04 kg |

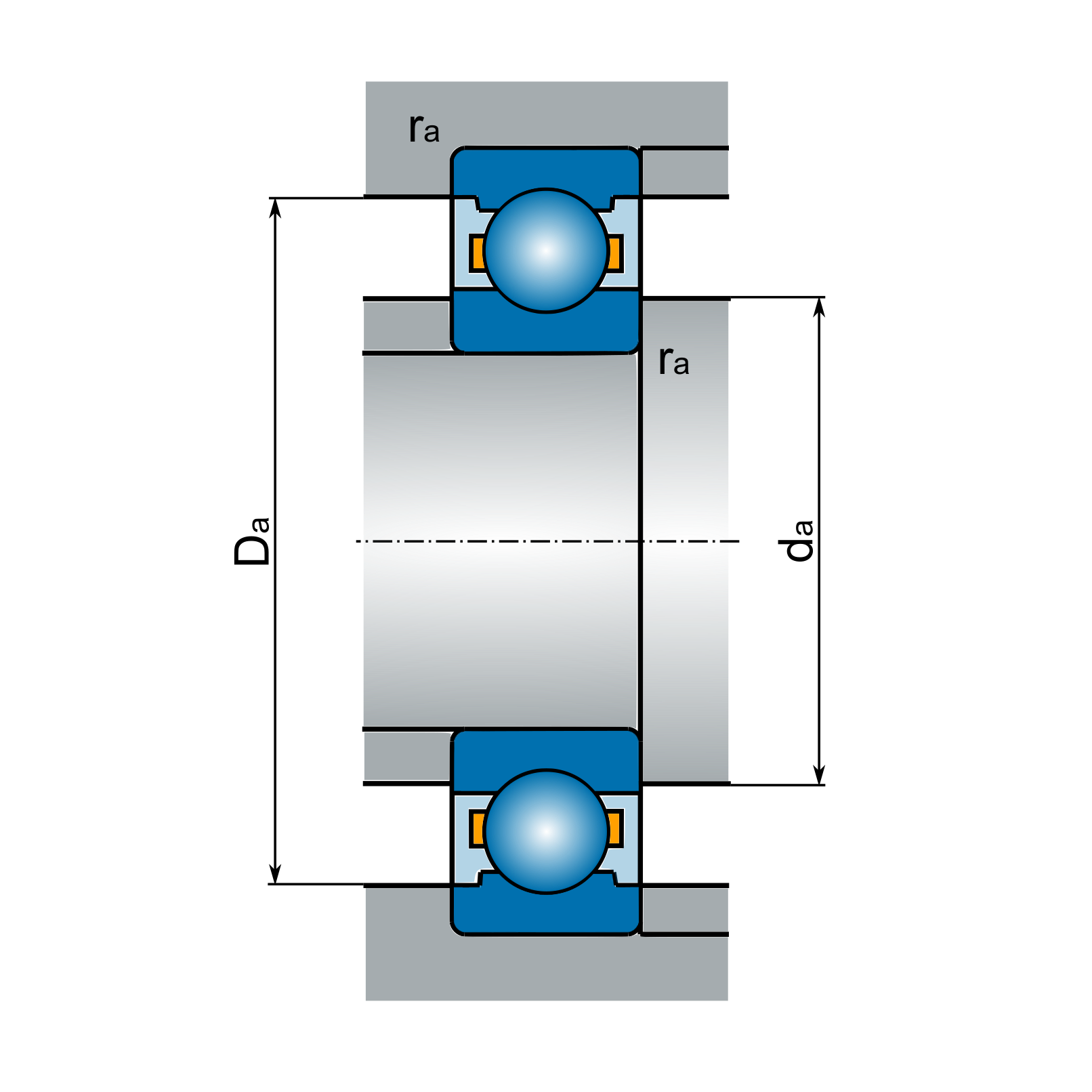

Data on related components
| dₐ | min. 19 mm |
| Dₐ | max. 33 mm |
| rₐ | max. 0.3 mm |
Data for calculation
| Basic dynamic load rating | Cᵣ | 6.001 kN |
| Basic static load rating | C₀ᵣ | 3.267 kN |
| Fatigue load limit | Cᵤ | 0.15 kN |
| Reference speed - grease | nG | 20000 min⁻¹ |
| Reference speed - oil | nₒ | 24000 min⁻¹ |
** indicates bearing in NEW FORCE standard
