54207**
Size and weight
| Ød | 30 mm |
| ØD | 62 mm |
| B | 8 mm |
| H | 37.73 mm |
| H₁ | 42 mm |
| C | 7 mm |
| R | 50 mm |
| rₛ | 1 mm |
| r₁ₛ | 0.3 mm |
| ØD₁ | 37 mm |
| ØD₂ | 48 mm |
| ØD₃ | 65 mm |
| s | 21 mm |
| Mass | 0.53 kg |

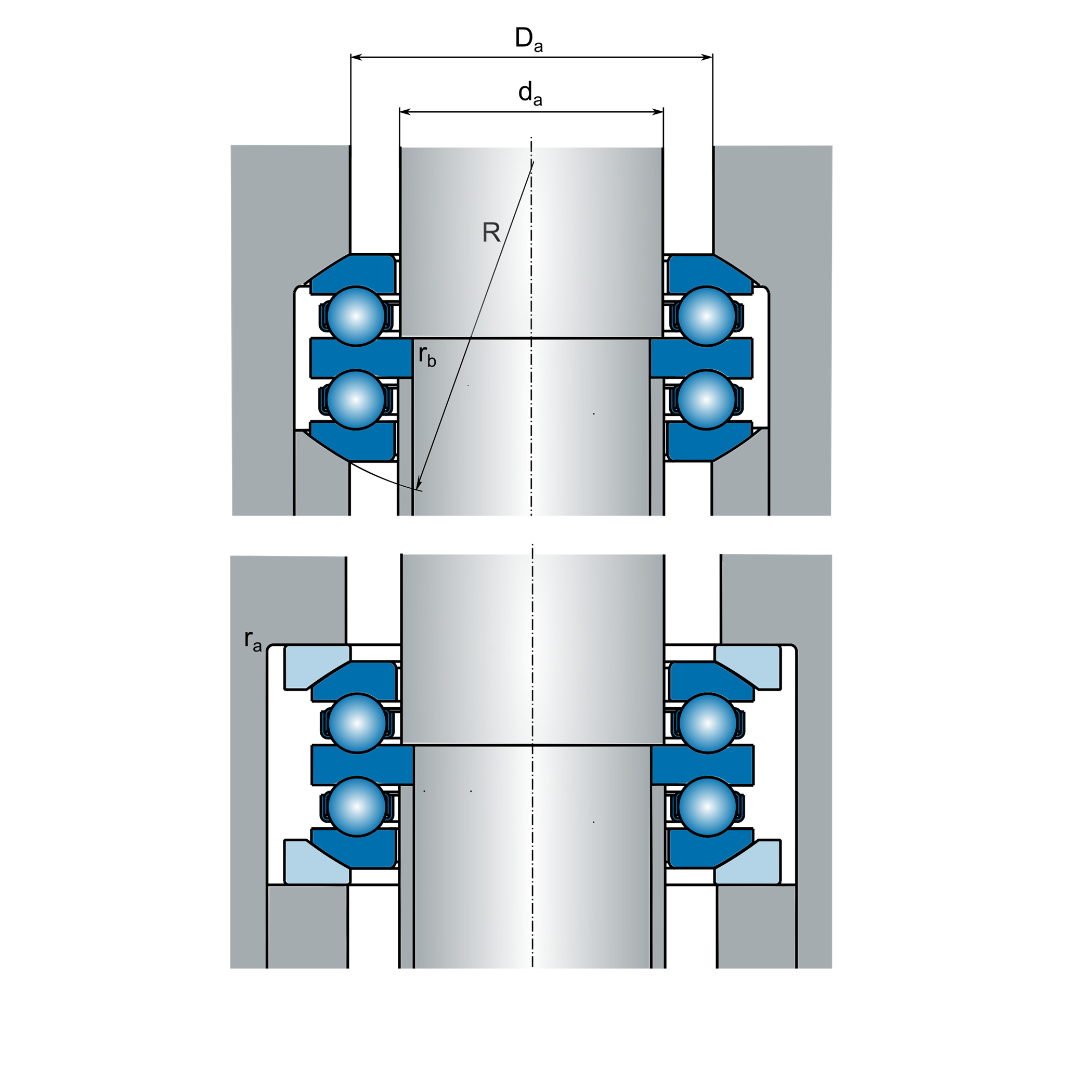

Data on related components
| dₐ | max. 35 mm |
| Dₐ | max. 48 mm |
| rₐ | max. 1 mm |
| rb | max. 0.3 mm |
| Appropriate sphered washer | U207 |
Data for calculation
| Basic dynamic load rating | Cₐ | 41.45 kN |
| Basic static load rating | C₀ₐ | 78.2 kN |
| Fatigue load limit | Cᵤ | 3.55 kN |
| Reference speed - grease | nG | 3500 min⁻¹ |
| Reference speed - oil | nₒ | 4700 min⁻¹ |
| Minimum load factor | M | 0.032 |
** indicates bearing in NEW FORCE standard
