16076MA
16076MA

Size and weight

Ød 380 mm
ØD 560 mm
B 57 mm
rₛ 4 mm
Mass 51 kg

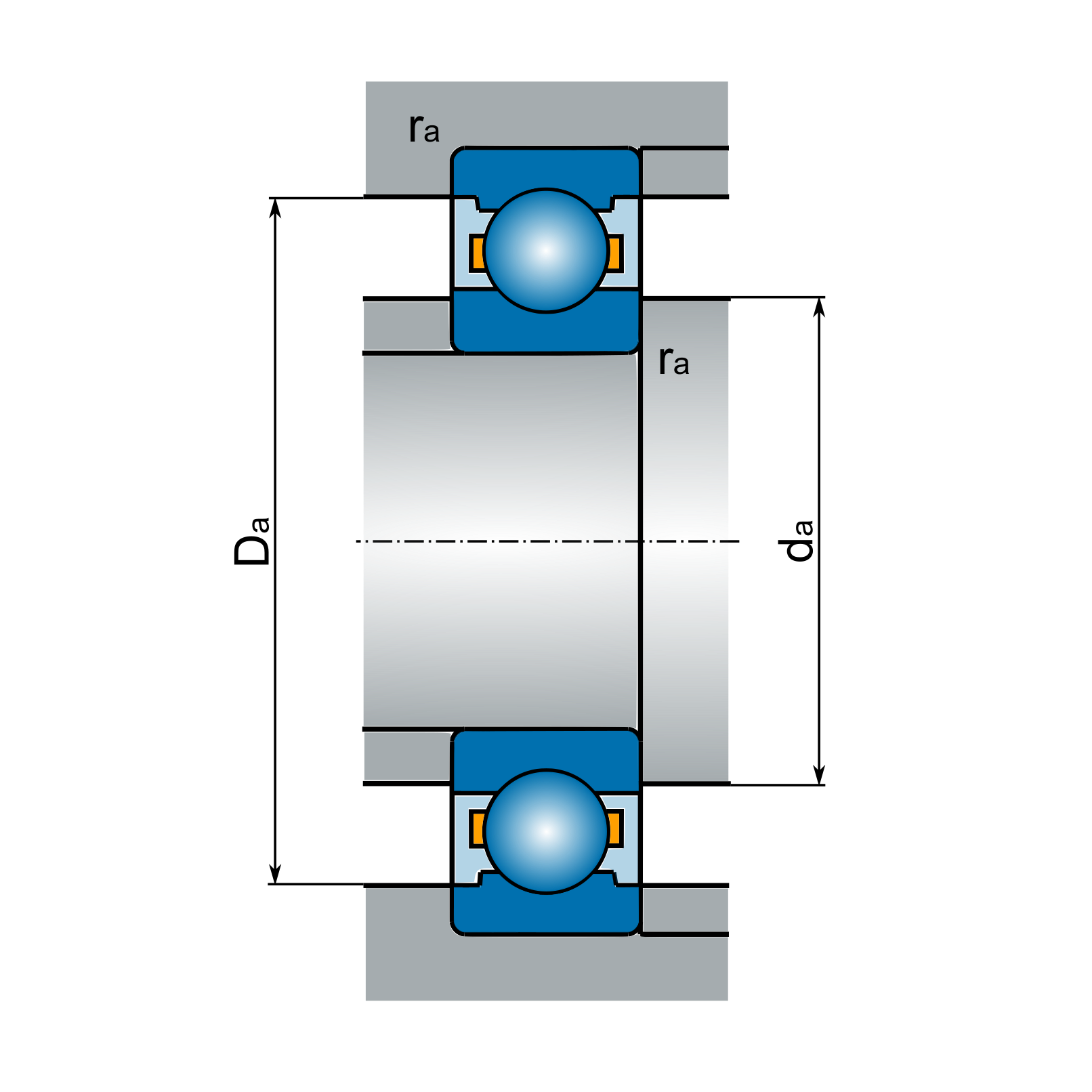

Data on related components

dₐ min. 395 mm
Dₐ max. 545 mm
rₐ max. 3 mm

Data for calculation

Basic dynamic load rating Cᵣ 377 kN
Basic static load rating C₀ᵣ 620 kN
Fatigue load limit Cᵤ 12.2 kN
Reference speed - grease nG 950 min⁻¹
Reference speed - oil nₒ 1200 min⁻¹
** indicates bearing in NEW FORCE standard
