1215K**
Menu
1215K**
1215K**

Size and weight

Ød 75 mm
ØD 130 mm
B 25 mm
B₁ - mm
rₛ 1.5 mm
Mass 1.34 kg

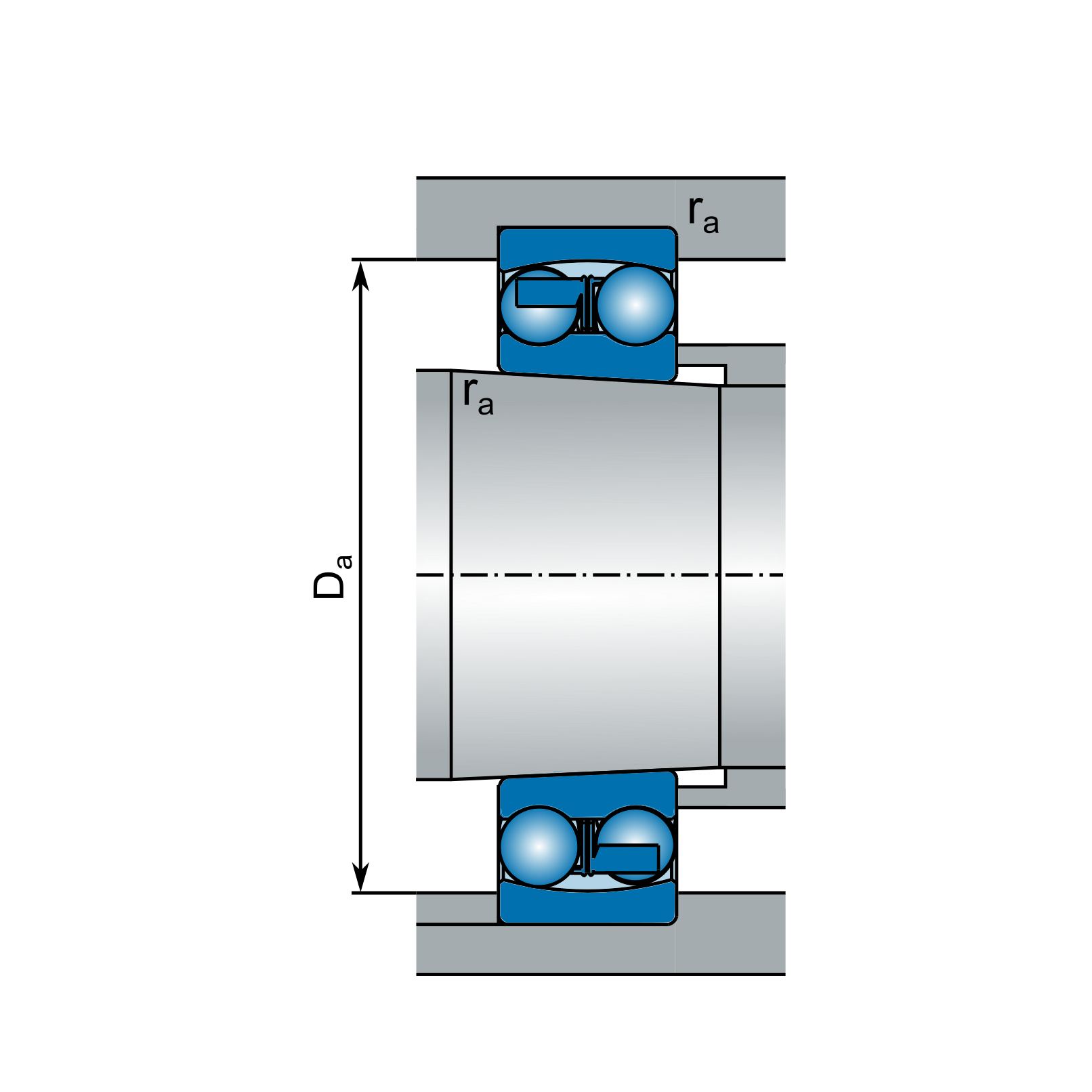

Data on related components

dₐ min. - mm
Dₐ max. 121 mm
rₐ max. 1.5 mm
Appropriate adapter sleeve H215

Data for calculation

Basic dynamic load rating Cᵣ 40.1 kN
Basic static load rating C₀ᵣ 15.5 kN
Fatigue load limit Cᵤ 0.7 kN
Reference speed - grease nG 4700 min⁻¹
Reference speed - oil nₒ 5600 min⁻¹
Calculation factor e 0.18
Calculation factor Y1 3.6
Calculation factor Y2 5.6
Calculation factor Y₀ 3.8
** indicates bearing in NEW FORCE standard
